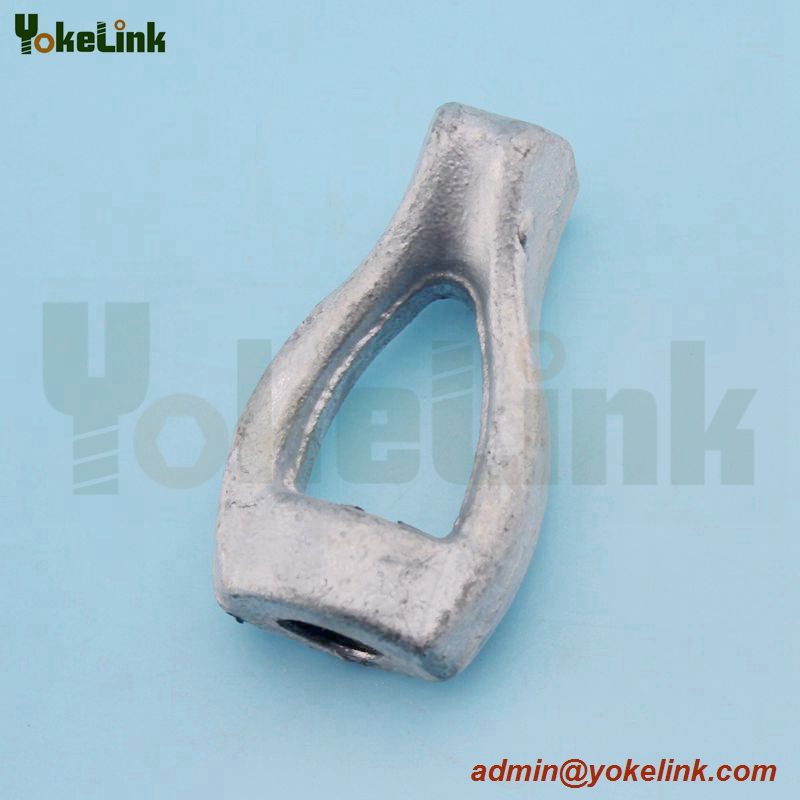

Thimble Eye Nut

Thimble eye nut are used for attaching to thru bolt or thimbleye Bolts for straight away head guys. The thimble eye nut is assembled with the thread end of 5/8" or 3/4" eye bolts, which goes across the wooden pole for supporting the strain insulators to the dead end wire.

Yokelink Thimble Eye Nut made from Drop forged steel, manufactured according to ANSI/IEEE Std C135.80. The finish Hot dip galvanized to meet ASTM A153 specification.

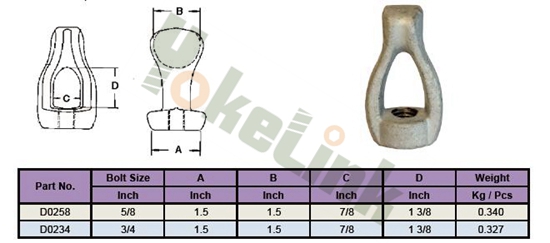

Product Catalogue:

Forged Twin Eye Nut, Triple Eye Nut and 1/2 inch Thimble Eye Nuts are available. . When you need Thimble Eye Nuts, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Thimble Eye Nuts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
