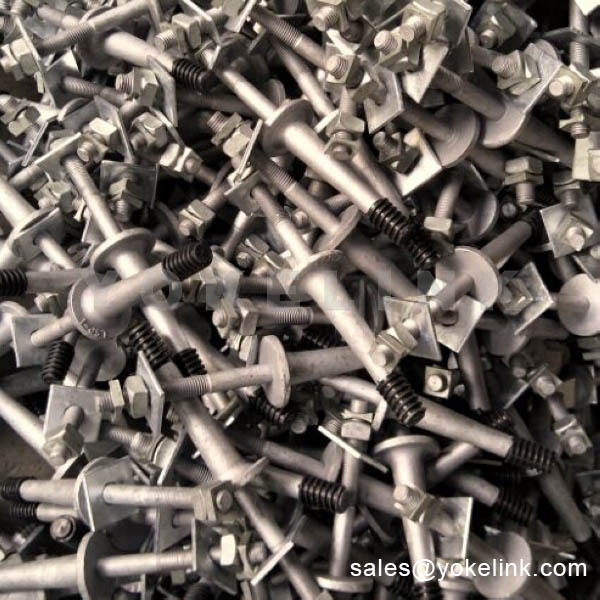

Crossarm Insulator Pin

Features

Cantilever load rating is 2,500 lbs. based on ANSI/IEEE 10 degree deflection criterea

Minimum thread length of shank is 2-1/2"

Galvanized steel per ASTM A-153

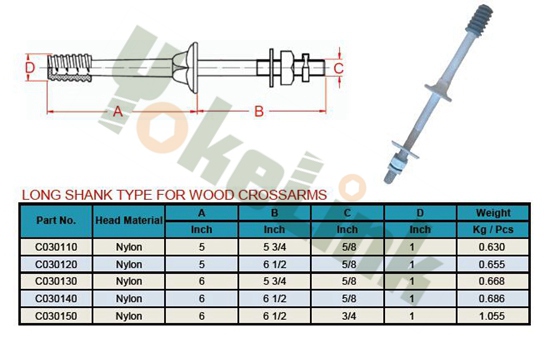

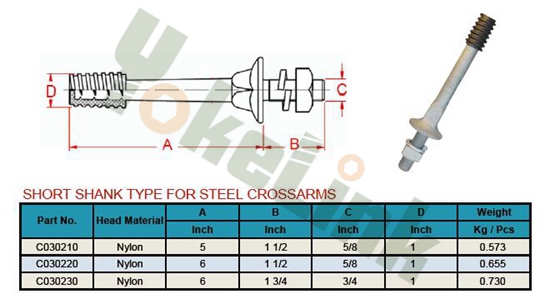

Specification

Crossarm Insulator Pin Application

Crossarm pins have several important applications in electrical and telecommunication systems:

Power Distribution Lines: In overhead power distribution networks, crossarm pins are used to support insulators. These insulators, in turn, hold the electrical conductors in place. This helps maintain the electrical integrity of the system and prevents accidental contact between the live wires and the pole structure.

Telecommunication Lines: For overhead telephone and data communication lines, crossarm pins serve a similar function. They support the insulators that hold the communication cables in position, keeping them elevated and separated from each other.

contact system (OCS). They assist in holding the insulators and conductors that supply power to the trains, ensuring a continuous and stable power supply for locomotive operation.

Buy Crossarm Insulator Pin From Yokelink

The Yokelink brand of insulator hardware is a comprehensive offering that includes pins and brackets for crossarm, pole top and side mounting of pin or post type insulators. Also included are line post studs, used with post type insulators. All products are designed and manufactured in compliance with applicable electric utility industry standards.

Yokelink supply a vast range of Fasteners for various industries, including construction, automotive, machinery, energy, electronics, and more. To ISO, DIN, ANSI/ASME, BS, and JIS standards, including: Nuts, Bolts, Screws, Washers .

There are hundreds of combinations of materials, heads, threads, plating, heat treating, and secondary operations. The materials and finishes including Steel, Brass, Stainless Steel, Aluminum, Zinc plating, Galvanized and Black.

We provide standard and specialised Fastener solutions, coupled with industry customers. We can also have the flexibility, capacity and expertise to manufacture fully customised Fasteners specific to your application.
